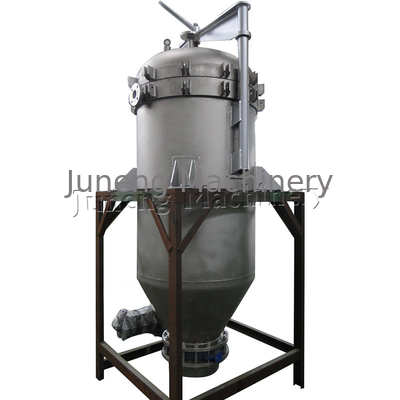

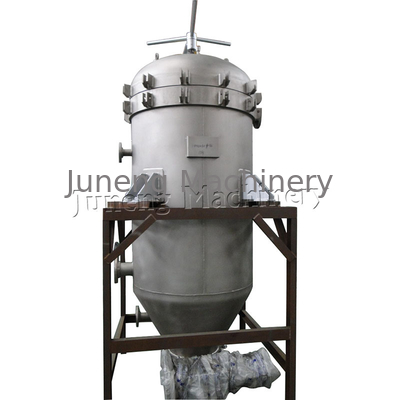

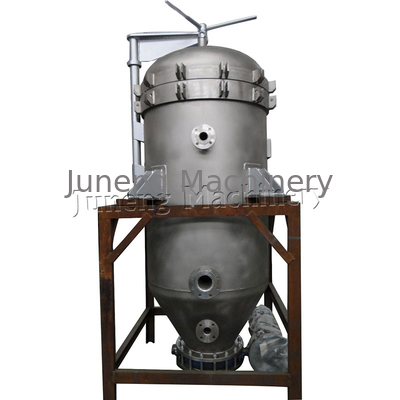

Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area

Lugar de origen Jiangsu, China
Nombre de la marca Juneng
Cantidad de orden mínima 1 set
Precio $11,940-21,343 / set

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Estructura Filtro vertical de la hoja Material Acero inoxidable 304
Capacidad 4-6T/H para aceite Área de filtración 20m2
Temperatura de diseño 100-150 ℃ Presión de diseño 0.6MPA
Volumen del producto de filtración 400L Presión laboral 0.1-0.4MPA
Temperatura laboral ≤150 ℃ Volumen de la máquina Las demás:
Material de la hoja 316L Grueso de la hoja 1,8 milímetros
Tipo de válvula Válvula de mariposa DN 400 Material de asiento de válvula NH-S
Presión del actuador neumático barra 5,5
Resaltar

Stainless Steel 304 vertical pressure leaf filter

,

20m2 filtration area pressure leaf filter

,

Vertical pressure leaf filter with warranty

Deja un mensaje
Descripción de producto
NYB High Efficiency Plate Type Pressure Leaf Filter with Insulate Jacket
Product Specifications
Attribute Value
Warranty 1 Year
After-sales Service Field maintenance and repair service
Name Pressure leaf filter
Structure Vertical leaf Filter
Material Stainless Steel 304
Capacity 4-6T/H for oil
Filtration area 20m²
Color Green or blue
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Product Overview

The NYB high efficiency plate hermetic filter is a high-performance, energy-saving filtration system designed for fully enclosed operation. This advanced equipment finds applications across multiple industries including chemical processing, petroleum refining, paint production, food processing, and pharmaceutical manufacturing.

Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 0
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 1
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (℃) Machine volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB-7 7 105 1-1.8 0.1-0.4 ≤150 420
NYB-10 10 150 1.6-3 0.1-0.4 ≤150 800
NYB-12 12 240 2-4 0.1-0.4 ≤150 1000
NYB-15 15 300 3-5 0.1-0.4 ≤150 1300
NYB-20 20 400 4-6 0.1-0.4 ≤150 1680
Key Features
  • Eliminates need for filter cloth and paper, significantly reducing operational costs
  • Fully enclosed system prevents material loss and ensures environmental compliance
  • Vibration-assisted residue removal reduces labor requirements and enables continuous operation
  • Pneumatic valve discharge system minimizes worker fatigue
  • Capable of activated carbon or bleaching filtration, serving as a complete replacement for traditional plate and frame filters
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 2
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 3

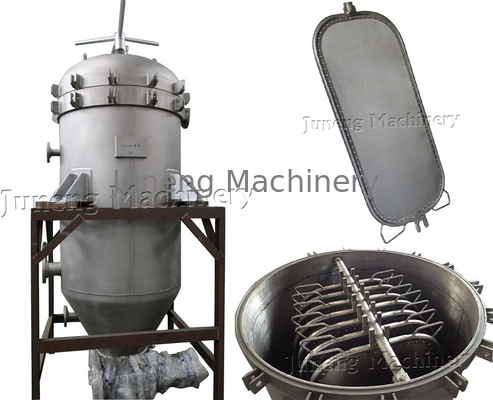

Filter Leaf Specifications (Example: NYB-12)

Configuration: 11 filter leaves provide 12 sqm filtration area

Construction: Heavy box channel (1.8mm) made from 316L stainless steel

Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal

Butterfly Valve Specifications (Example: NYB-12)

Type: DN 400 wafer type butterfly valve for dry cake discharge

Materials: NH-S seat material (rated to 150°C)

Actuation: Pneumatic double-acting actuator with 5.5 Bar air supply

Certifications
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 4
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 5
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 6
Service & Support
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 7
Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 8
Pre-Sales Service
  • Comprehensive inquiry and consulting support
  • Sample testing services available
  • Factory visit opportunities
After-Sales Service
  • Installation and operation training
  • Overseas engineer support available
  • Prompt response within 2 hours for domestic service requests
  • On-site problem resolution until customer satisfaction
About Juneng Group

Established in 2006, Juneng Machinery (China) Co., Ltd. specializes in the research, development, production, and distribution of filtration and separation equipment. With four strategically located factories in Nanjing and Yixing City, we maintain rigorous quality control and exceptional customer service standards.

Our product portfolio includes advanced filtration systems, separators, decanter centrifuges, and pumps, all certified to CE, ASME U, and ISO 9001 standards. Our solutions serve domestic markets across China and export to numerous countries including the USA, Germany, Japan, and Southeast Asian nations.

Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area 9
Quality Assurance
  • Factory audit available prior to purchase
  • Material inspection during manufacturing process
  • Strict compliance with technical requirements
